THE ELECTRON™ (ART-E1)

For dentists, oral surgeons and veterinarians alike, electrosurgery units have become a staple in the operatory for their fast cutting, ease of use, and track record of safe implementation. For minor incisions, excisions and drainings, The Electron™ from Bonart™ stands amongst its peers as one of the most widely-used electrosurgical devices in the Western world.

Utilizing monopolar radio waves – not heat – to cut tissue, The Electron™ eliminates the tissue scarring of the old cautery machines, and puts exacting precision at your fingers.

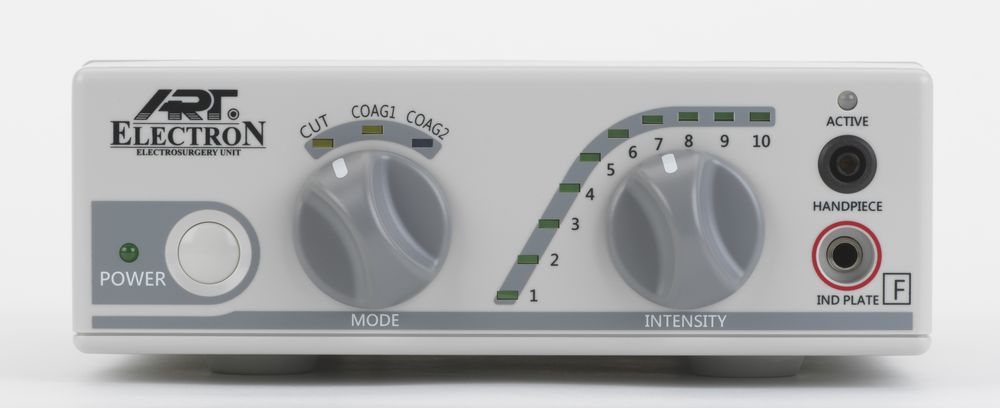

From the crystal clear LED readout highlighting each of the 10 power levels and 3 modes (Cut, Coag1 and Coag2), down to the Tungsten electrode set and hand piece, The Electron™ from Bonart™ is a tecnical marvel at a fraction of the price of it’s competitors.

  • Electron (ART E1) Main Unit
  • Power Cord
  • PP0031-002: Universal foot switch
  • EU0004-002: Indifference/ Grounding plate

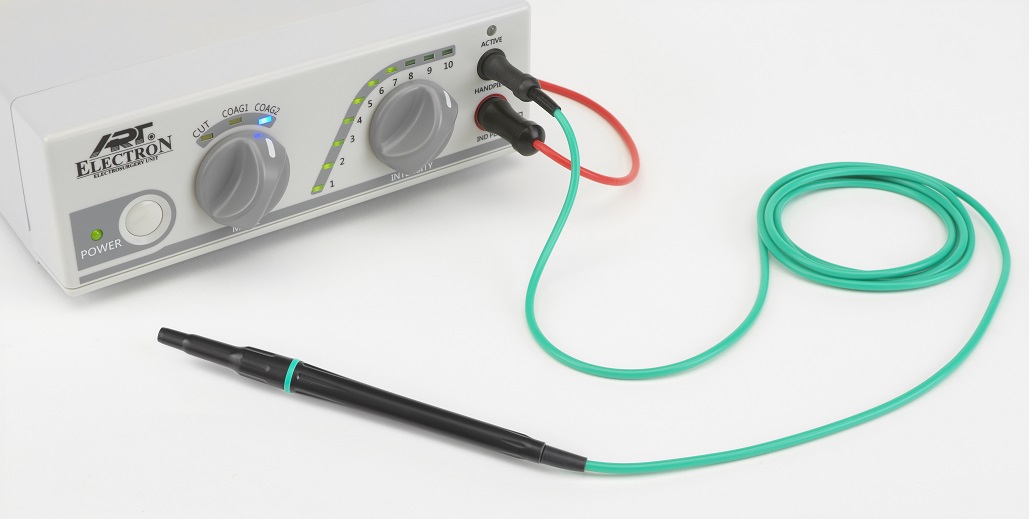

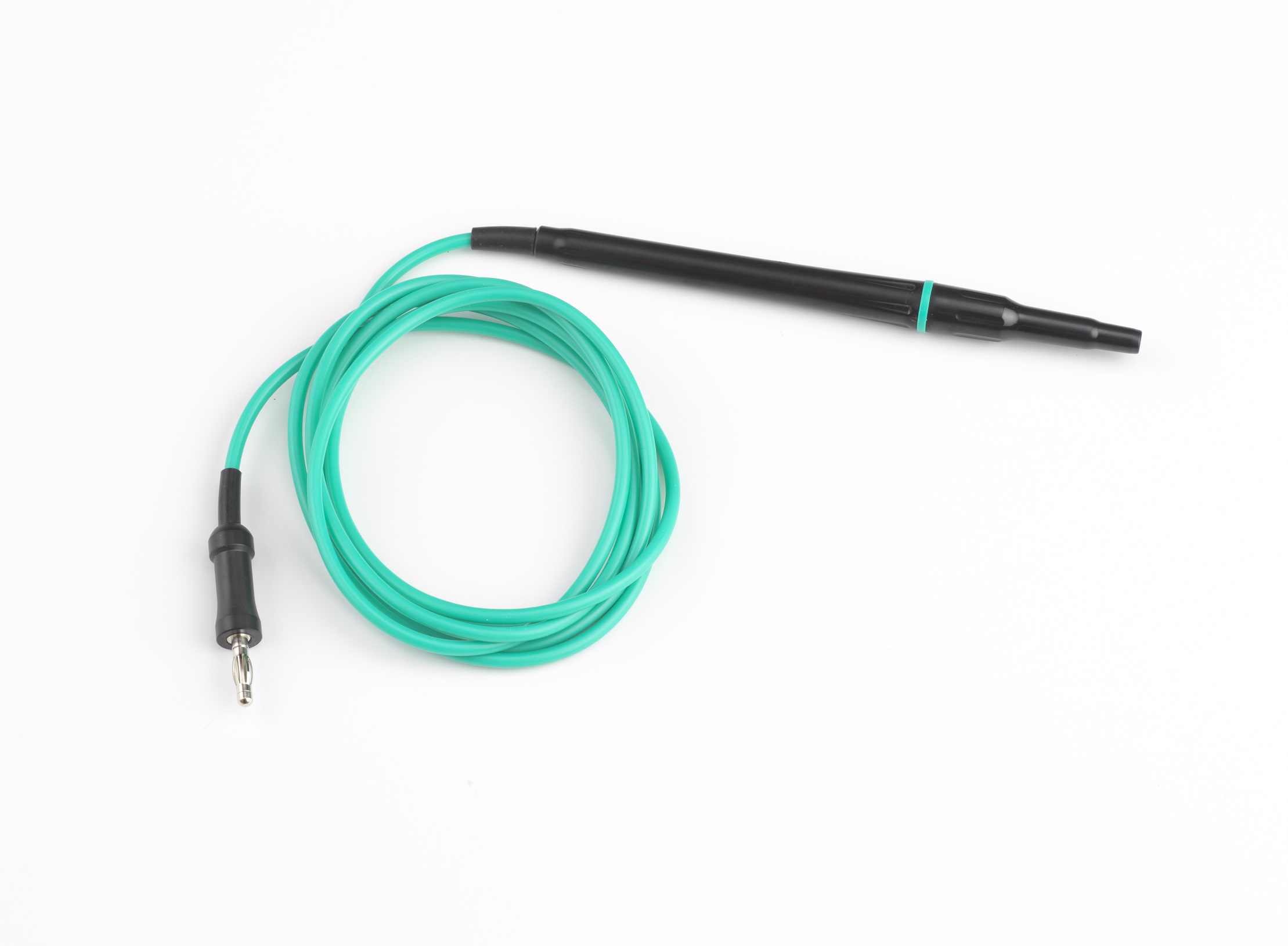

  • EU0003-032: E1 hand piece
  • TE0002-002: Assorted electrode set of 7 (includes the following electrodes):
    • TE0001-452: GT1 Blade Electrode
    • TE0001-462: GT2 Small loop Electrode
    • TE0001-472: GT3 Large loop Electrode
    • TE0001-482: GT4 Fine Wire Electrode
    • TE0001-492: GT5 Heavy Wire Electrode
    • TE0001-502: GT8 Small Ball (2.38mm) Electrode
    • TE0001-512: GT9 Heavy Ball (5mm) Electrode
  • Maximum power output: 50W (@ 400 ohm load)
  • Power supply: 110V±5% ~50/60Hz 92VA or 220V±5% ~50/60Hz 92VA
  • Work frequency: 1.5~1.7MHz±5%
  • Dimension (cm): 23(L) x 22.5(W) x 8.5(H)
  • Hand piece cable length: 190 cm
  • Indifference plate cable length: 190 cm
  • Weight: 12lbs
